Heavy Duty Stationary Hydraulic Scissor Lift Platform for Customized Configurations
Detail Information
Certification:
CE, ISO 9001
Model NO.:
M2-015100-D2B
Product Name:
Heavy Duty Stationary Hydraulic Scissor Lift Table
Capacity:
1500kg
Lift Stroke:
1000mm
Closed Height:
230mm
Transport Package:
Wooden Pallet
Trademark:
Marco
Origin:
Ningbo
HS Code:
8428909090
Supply Ability:
1200pieces/Year
Application:
Workshop Crane, Warehouse Crane, Building Crane
Lift Mechanism:
Scissor Lift
Carrying Capacity:
Special Weight Level
Moves:
Stationary
Driven Type:
Hydraulic
Running Mode:
Stationary
Customization:
Available | Customized Request
Product Description
Marco Heavy Duty Stationary Hydraulic Scissor Lift Platform
Product Description

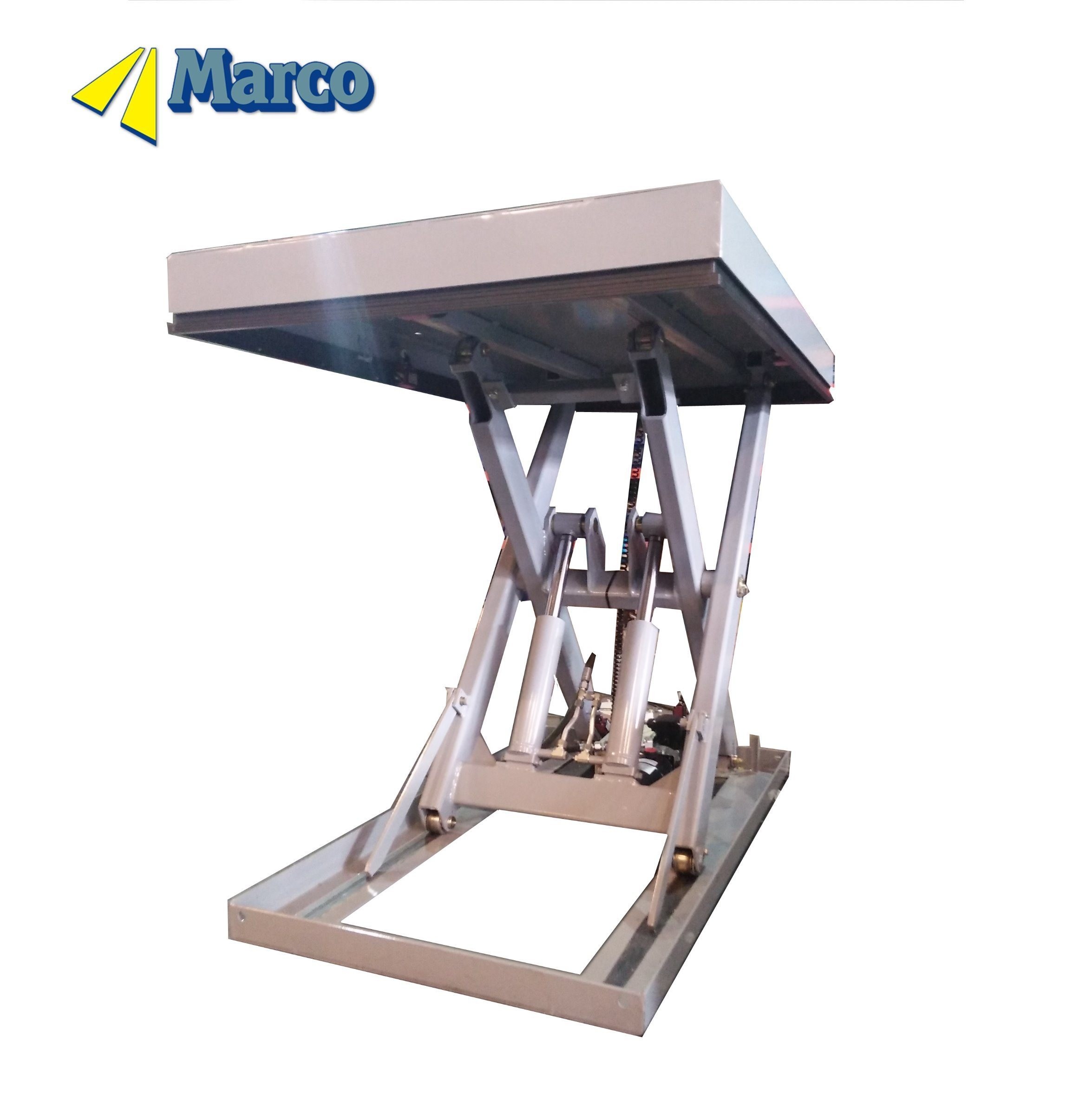

Heavy Duty Stationary Hydraulic Scissor Lift Platform
| SPECIFICATION | |||
| Capacity (Kg): | 1500 | Rated current (A): | 2,4 |
| Stroke (mm): | 1000 | Control voltage (V): | 24 AC |
| Closed height (mm): | 230 | Power pack location: | INT |
| Platform length (mm): | 1000 | Protection class: | IP55 |
| Platform width (mm): | 1500 | Hydraulic oil: | K2 |
| Lifting time (s): | 30 | Surface treatment: | ISO 32 |
| Output (kW): | 0,98 | Colour: | RAL 7046 |
| Power supply (V): | 3x400 AC | Lift category: | 3 |
| Frequency (Hz): | 50 | Declaration: | IIA |
Marco Standard Components
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
