products details
|

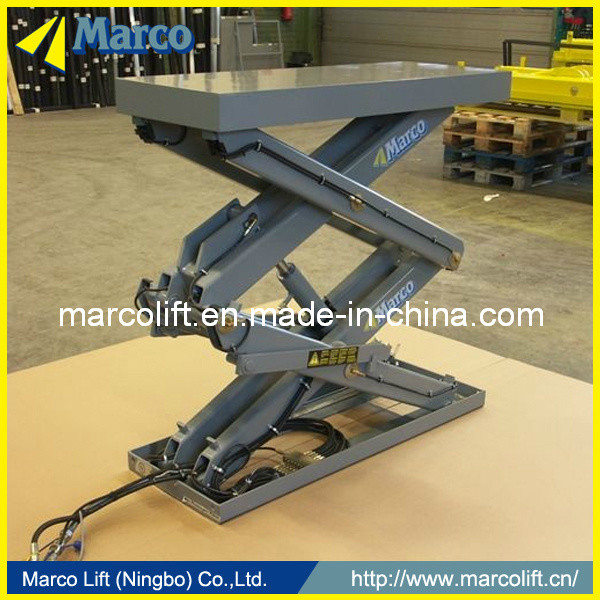

Running Mode Stationary 0.4-1.5 Ton Marco High Scissor Lift Table for Warehouse Crane
Higher strokes are achieved by designing the lift table with a multiple set of vertically mounted scissors.
High-lift scissor lift table can be used for example as work platforms, pallet loaders, elevators, disabled persons lifts and pallet stackers.
If compared with a traditional elevator Marco high lift is a rational and cost saving solution.
Main Specification:
1.Standard Options
Pump: Europe brand
Control box- dead man control with up/down/E-stop
Cylinder: Marco designing, OEM made, including rupture valve, damping action and pilot valve
Sealing kit for cylinder: SKF brand
Motor: Hoyer motor, protection IP55
Scissor arm: Q345B
Hydraulic hose/fitting: Eaton
Paint: Finland brand - Tikkurila
2.Options extra:Depends on your require
Our Services:
1. For all your inquires about us , we will reply you in detail within 24 hours
2. We own well-tranied and passional sales and after- sale services who can speak fluent Engligh language
3. We can provide customise solutions to particular requirements
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
Hot sales for 0.4-1.5 Ton Marco high lift table with CE approved:
| Art.No. | Type | Capacity ( kg) | Platform (L*W) | Lift Height (mm) | Own Height (mm) | Lift time (s) | Motor (kw) | Weight (kg) |
| 860660 | M0-004080-D12H | 400 | 800*600 | 800 | 200 | 19 | 0.55 | 120 |
| 860105 | M2-005180-D12H | 500 | 1350*1000 | 1800 | 350 | 19 | 1.1 | 370 |
| 860102 | M2-005320-D22H | 500 | 2250*1000 | 3200 | 400 | 40 | 2.2 | 550 |
| 860110 | M2-0010180-D22H | 1000 | 1350*1000 | 1800 | 350 | 22 | 2.2 | 370 |
| 860114 | M2-010200-D22H | 1000 | 1500*1000 | 2000 | 350 | 22 | 2.2 | 400 |
| 860115 | M2-010250-D22H | 1000 | 1800*1000 | 2500 | 350 | 32 | 2.2 | 475 |
| 860118 | M3-010320-D22H | 1000 | 2250*1000 | 3200 | 500 | 47 | 2.2 | 770 |
| 860180 | M2-010330-D23H | 1000 | 1650*1000 | 3300 | 530 | 38 | 2.2 | 665 |
| 860111 | M2-015180-D22H | 1000 | 1350*1000 | 1800 | 400 | 22 | 2.2 | 375 |
