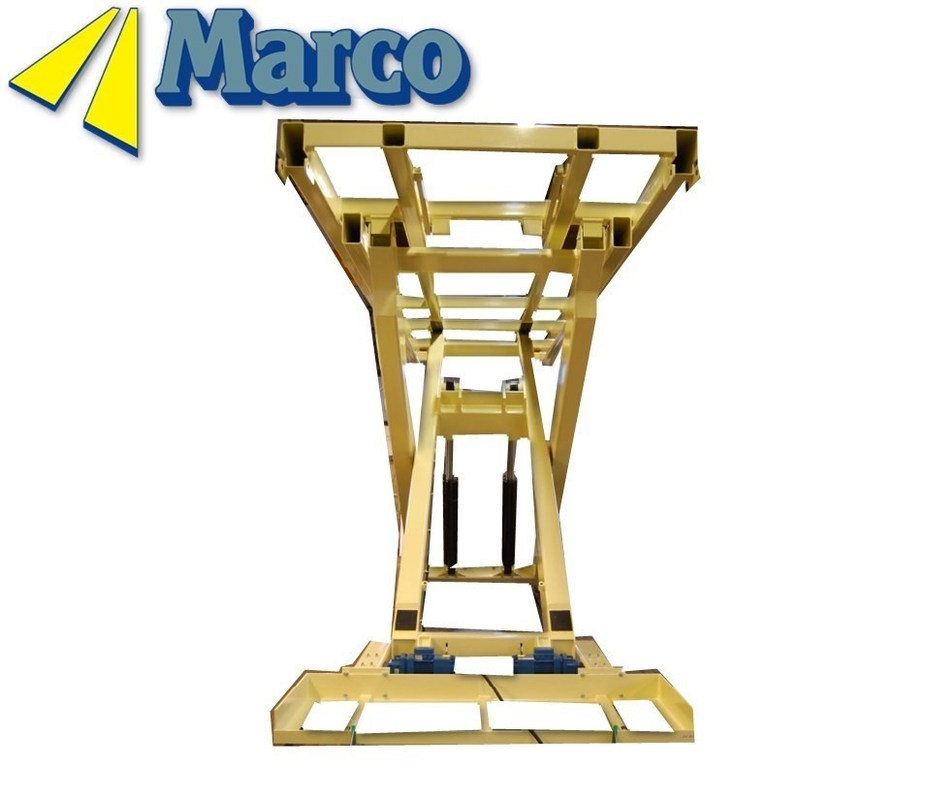

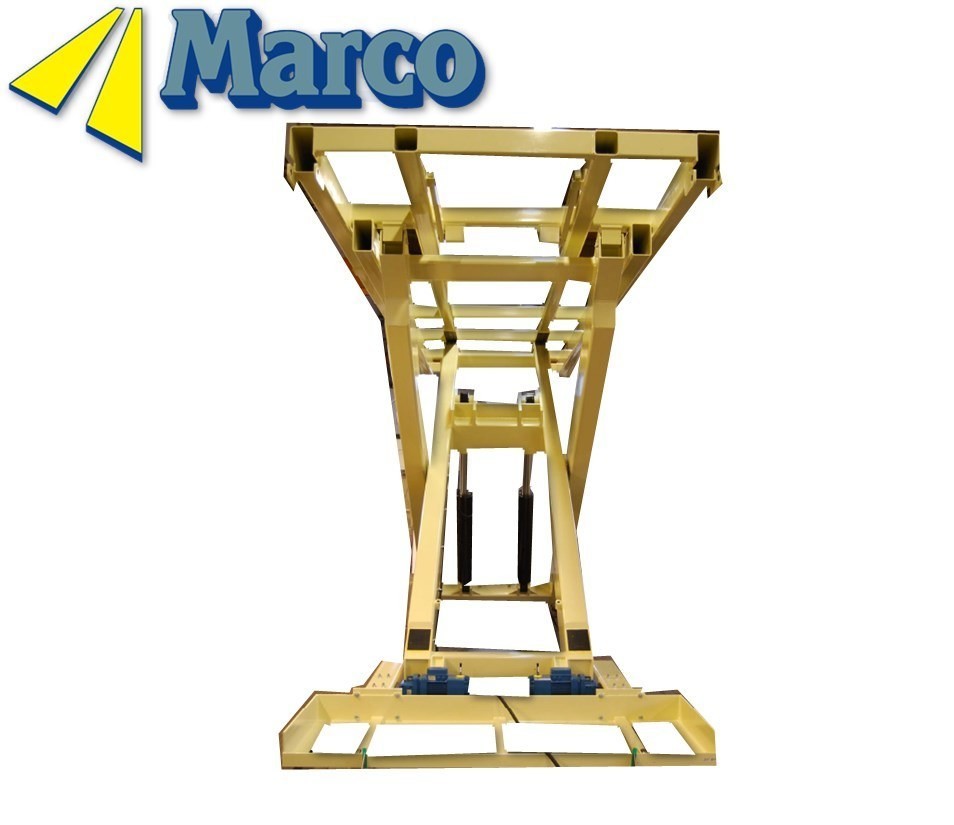

Vertical Hydraulic Scissor Lift Table with 18000kg Capacity and 2800mm Lift Stroke

Basic Information
Certification: CE, ISO 9001
Model NO.: M7, 8-180280-D2 Product Name: Hydraulic Scissor Lift Driven Table Without Frame
Capacity: 18000kg Lift Stroke: 2800mm
Closed Height: 725mm Transport Package: Wooden Pallet
Specification: 9000x2620mm (LxW) Trademark: Marco
Origin: Ningbo HS Code: 8428909090
Supply Ability: 1200pieces/Year Application: Workshop Crane, Warehouse Crane, Building Crane
Lift Mechanism: Scissor Lift Carrying Capacity: Special Weight Level
Moves: Stationary Driven Type: Hydraulic
Running Mode: Stationary Customization: Available | Customized Request

Marco Customized Heavy Duty Stationary Vertical Hydraulic Scissor Lift Driven Table Without Frame

Product Description
Table type: M7,8-180280-D2
Mechanical data
Capacity 18000kg
Platform size 9000x2620mm (LxW)
Lift stroke 2800mm
Closed height 725mm
Weight 7985kg
The table is intended to operate on a rail and is equipped with two electric engines for propulsion.






Marco Standard Components

All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.


Pump Bucher Motor Hoyer Denmark, protection IP55
Control Panel   Marco standard control box Sealing  Sweden, SKF
Cylinder Marco, with rapture valve and damping Limit switch USA, Suns
Safety frame Aluminum with limit switch Scissor arm Q345B, profile steel
Paint Finland, Tikkurila Hydraulic hose USA, Eaton




Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
