Marco Customsized 40 Degree Tilt Pallet Hydraulic Scissor Lift Table Warehouse Crane
Detail Information
Certification:
CE, ISO 9001
Model NO.:
M1-006090-D1-MT
Product Name:
Pallet Hydraulic Scissor Lift Table
Capacity:
600kg
Lift Stroke:
900mm
Close Height:
470mm
Transport Package:
Wooden Pallet
Trademark:
Marco
Origin:
Ningbo
HS Code:
8428909090
Supply Ability:
1200pieces/Year
Application:
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism:
Scissor Lift
Carrying Capacity:
Special Weight Level
Moves:
Stationary
Driven Type:
Hydraulic
Running Mode:
Stationary
Customization:
Available | Customized Request
Product Description
Marco Customsized 40 Degree Tilt Pallet Hydraulic Scissor Lift Table
Product Description
Marco Customsized 40 Degree Tilt Pallet Hydraulic Scissor Lift Table
| Mechanical data | |
| Capacity | 600kg |
| Platform size | 1350x800mm (LxW) |
| Lift stroke | 900mm |
| Lifting time | 20s |
| Closed height | 470mm |
Other

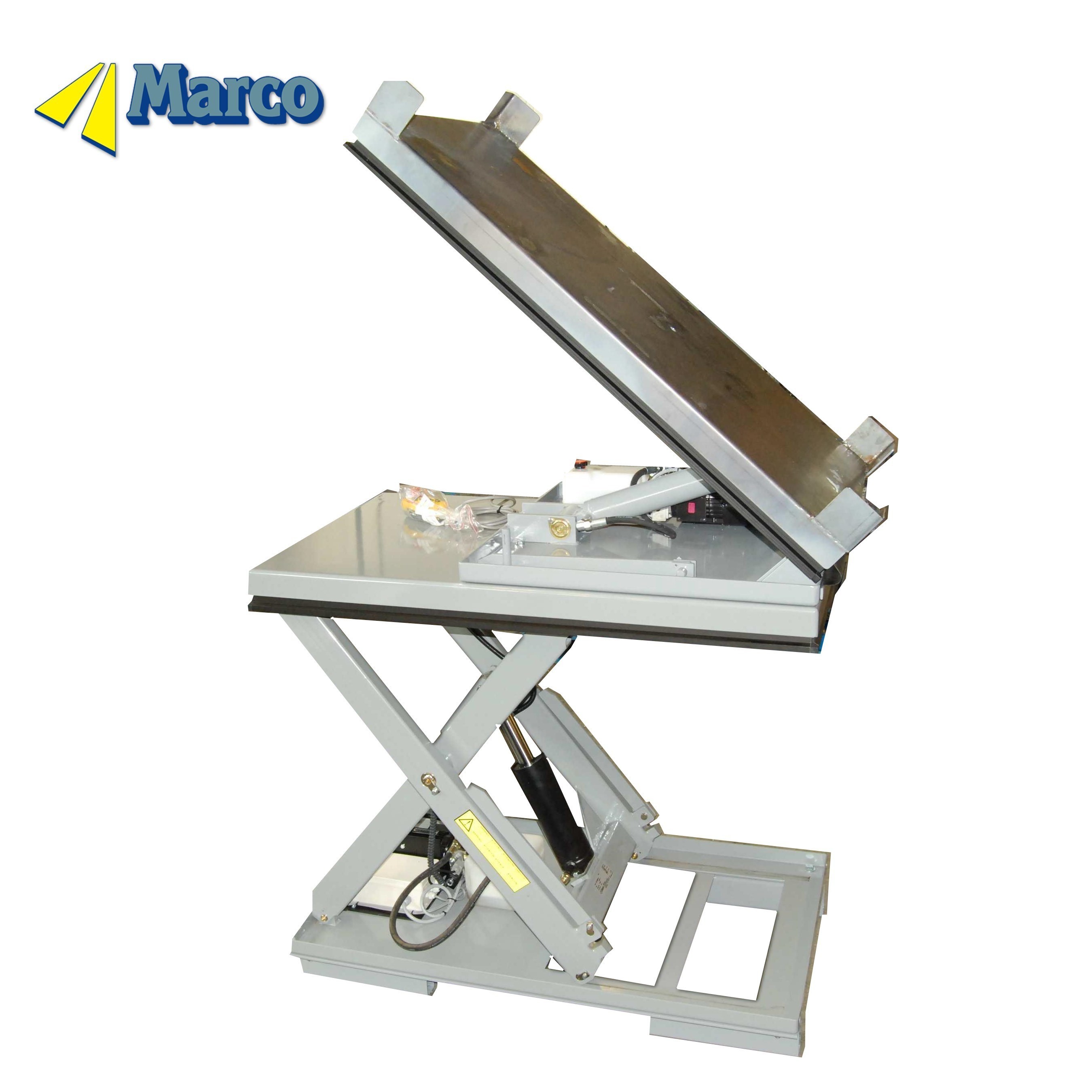

A tilt table designed to tilt 40degrees. On the platform there's support for an eurpallet. This table is also equipped with a pallet truck frame for easy access with a truck.
Marco Standard Components
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
