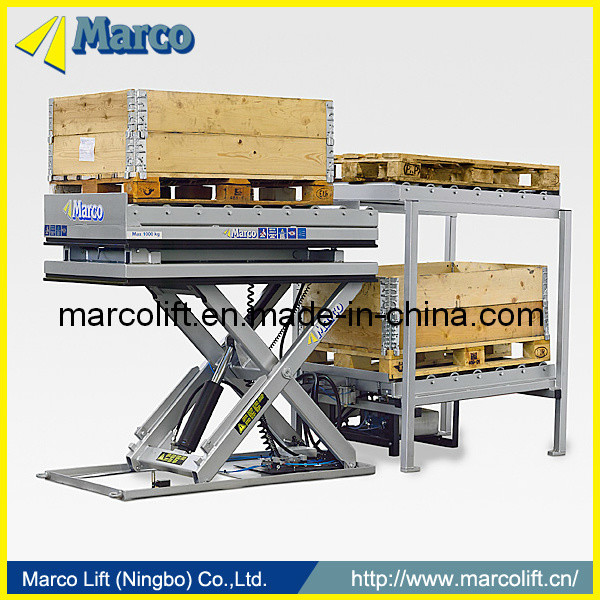

Marco Pallet Handler Scissor Lift Table with CE Approved Weight Level Moves Stationary

MarcoLift pallet handler applied in work places where it is necessary to gain better access to the goods thus creating an ergonomically proper working place. The pallet handler is combined with a suitable type of MarcoLift lift table. This latter is for example provided with a tilt function to improve accessibility to the material.

The operator has always a storage for not machined and machined items. Down-time is minimised.

Lift table operation and pallet stop is carried out by means of an electrical control unit.

MarcoLift pallet handler can easily be moved by a fork truck to another working place. The pallet handler is served by a fork truck.

The standard MarcoLift pallet handler scissor lift including lift table has the following features:

lifting capacity 1000 kg

stroke 1030 mm

platform size 1500 mm x 800 mm.

Main Specification:
1.Standard Options

Pump: Europe brand
Control box- dead man control with up/down/E-stop

Cylinder: Marco designing, OEM made, including rupture valve, damping action and pilot valve

Sealing kit for cylinder: SKF brand

Motor: Hoyer motor, protection IP55

Scissor arm: Q345B

Hydraulic hose/fitting: Eaton

Paint: Finland brand - Tikkurila

2.Options extra:Depends on your require

Our Services:
1. For all your inquires about us , we will reply you in detail within 24 hours
2. We own well-tranied and passional sales  and after- sale services who can speak fluent Engligh language
3. We can provide customise solutions to particular requirements
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks  (public holiday excluded)
