Versatile Hydraulic Scissor Lift Platform with 3000kg Capacity and 2300mm Lift Stroke
Detail Information
Certification:
CE, ISO 9001
Model NO.:
M4-030230-D2/2H
Product Name:
Customized Hydraulic Scissor Lift Working Platform
Capacity:
3000kg
Lift Stroke:
2300mm
Close Height:
1200mm
Transport Package:
Wooden Pallet
Trademark:
Marco
Origin:
Ningbo
HS Code:
8428909090
Supply Ability:
1200pieces/Year
Application:
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism:
Scissor Lift
Carrying Capacity:
Special Weight Level
Moves:
Stationary
Driven Type:
Hydraulic
Running Mode:
Stationary
Customization:
Available | Customized Request
Product Description

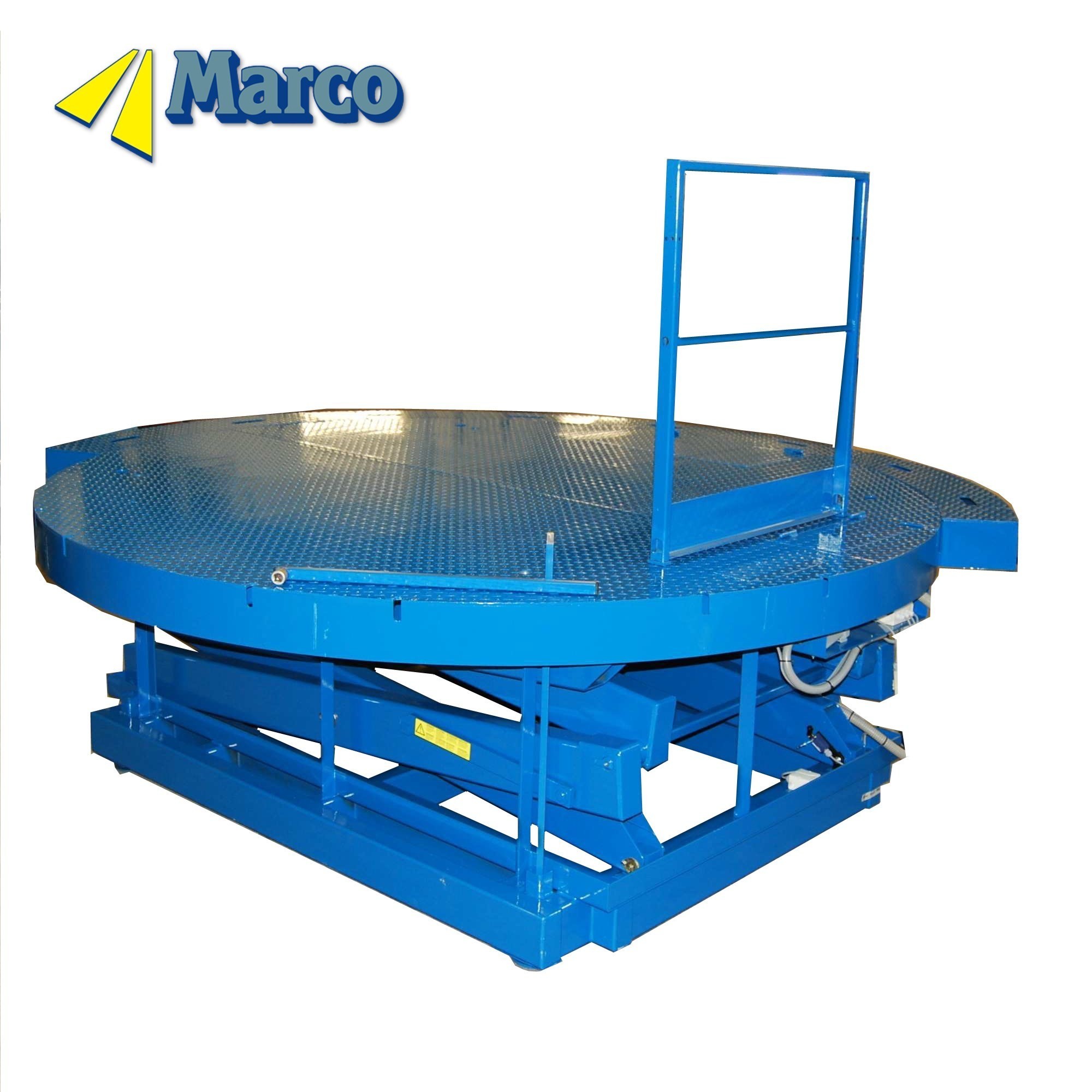

Customized Hydraulic Scissor Lift Working platform With Removable Segments
Product Description
Customized Hydraulic Scissor Lift Working platform With Removable Segments
| Mechanical data | |
| Capacity | 3000kg |
| Platform size | Dia3100 or Dia3600mm |
| Lift stroke | 2300mm |
| Lifting time | 41s |
| Closed height | 1200mm |
| Weight | 2660kg |
This table will be used to brick up a furnace. It's operated by a built-in foot control.
The table can be levelled with an adjustable foot in each corner of the frame and by removing segments on the outside of table, the diameter can be changed.
Marco Standard Components
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
