Hydraulic Scissor Lift for Theatres Performances Stationary Stage 5-030112-D4/2L
Basic Information
| Certification: | CE, ISO 9001 |
|---|---|
| Model NO.: | M7-030543-D2 + M3, 5-030112-D4/2L | Product Name: | Stationary Stage Hydraulic Scissor Lift Platform |
|---|---|---|---|
| Capacity: | 3000kg | Lift Stroke: | 6550mm |
| Close Height: | 1700mm | Transport Package: | Wooden Pallet |
| Trademark: | Marco | Origin: | Ningbo |
| HS Code: | 8428909090 | Supply Ability: | 1200pieces/Year |
| Application: | Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane | Lift Mechanism: | Scissor Lift |
| Carrying Capacity: | Special Weight Level | Moves: | Stationary |
| Driven Type: | Hydraulic | Running Mode: | Stationary |
| Customization: | Available | Customized Request |

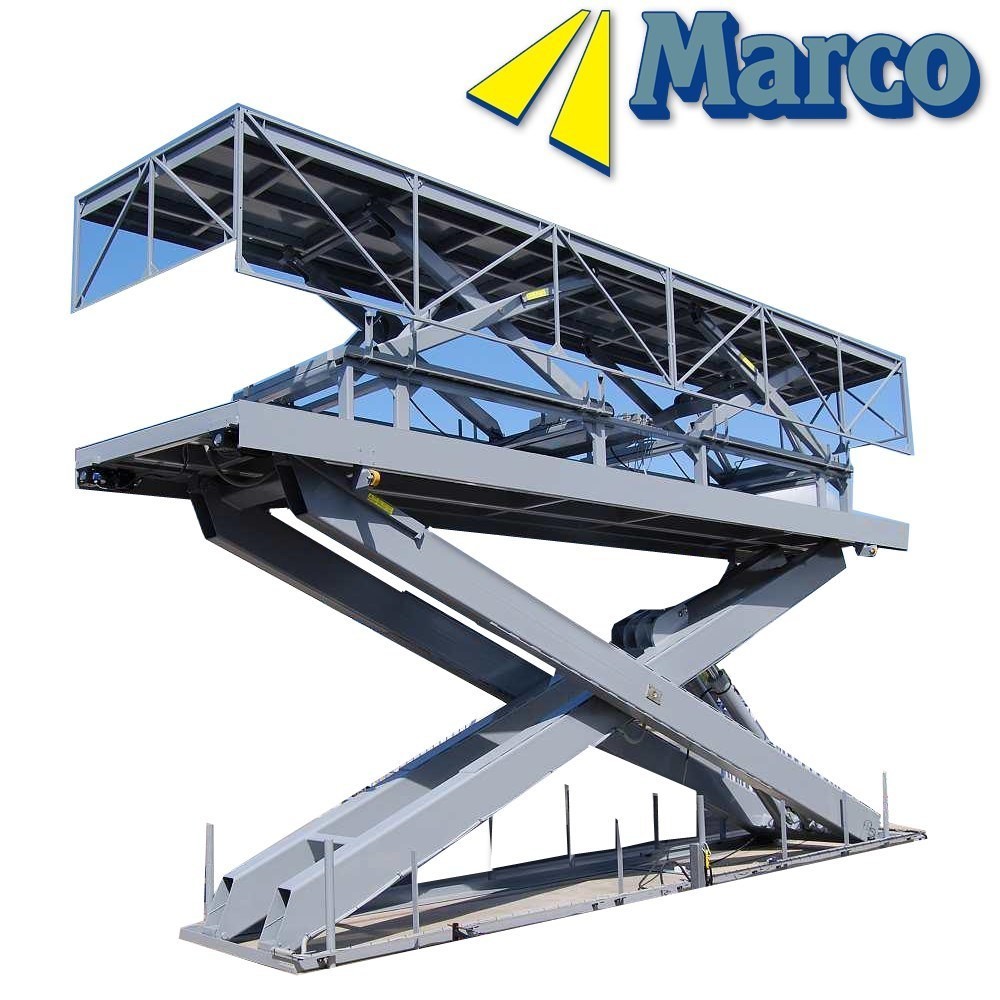

Stationary Stage Hydraulic Scissor Lift Platform for Theatres Performances
Product Description
Stationary Stage Hydraulic Scissor Lift Platform for Theatres Performances
| Mechanical data | |
| Capacity | 3000 kg |
| Platform size | 9490 / 8895 x 1955 mm |
| Frame size | 8300 x 1560 mm |
| Lift stroke | 6550 mm (5430 / 1120) |
| Lifting time | 151 s (122 / 29) |
| Closed height | 1700 mm (850 / 340 + 510) |
| Weight | 11110 kg (7920 + 3190) |
๏ผ The stage table is used during theatres,concerts and other scene performances.
๏ผ The M7-lift table will be located in a shaft and is provided with 4 hydraulic shot bolts, 4 guide rollers and intermediate switches for stops at 3 levels below floor level (highest
level of M7-table), where stage equipment is stored.
๏ผ The reason with a M3,5-lift table above the M7-table is to raise the last 1120 mm from floor level to stage level, where no possibility was to lock the table with shot bolts.
๏ผ The upper platform has pipe steel framework on 3 sides for wooden panel attachment.
Marco Standard Components
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
