2600mm Hydraulic Scissor Lift Working Platform with Wheel Chassis and Emergency Lowering
|
2600mm Hydraulic Scissor Lift Working Platform with Wheel Chassis and Emergency Lowering
Detail Information
Certification:
CE, ISO 9001
Model NO.:
M3-010200-D2
Product Name:
2600mm Hydraulic Scissor Lift Working Platform
Capacity:
1000kg
Lift Stroke:
2000mm
Close Height:
600mm
Transport Package:
Wooden Pallet
Trademark:
Marco
Origin:
Ningbo
HS Code:
8428909090
Supply Ability:
1200pieces/Year
Application:
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism:
Scissor Lift
Carrying Capacity:
Special Weight Level
Moves:
Stationary
Driven Type:
Hydraulic
Running Mode:
Stationary
Customization:
Available | Customized Request
Product Description

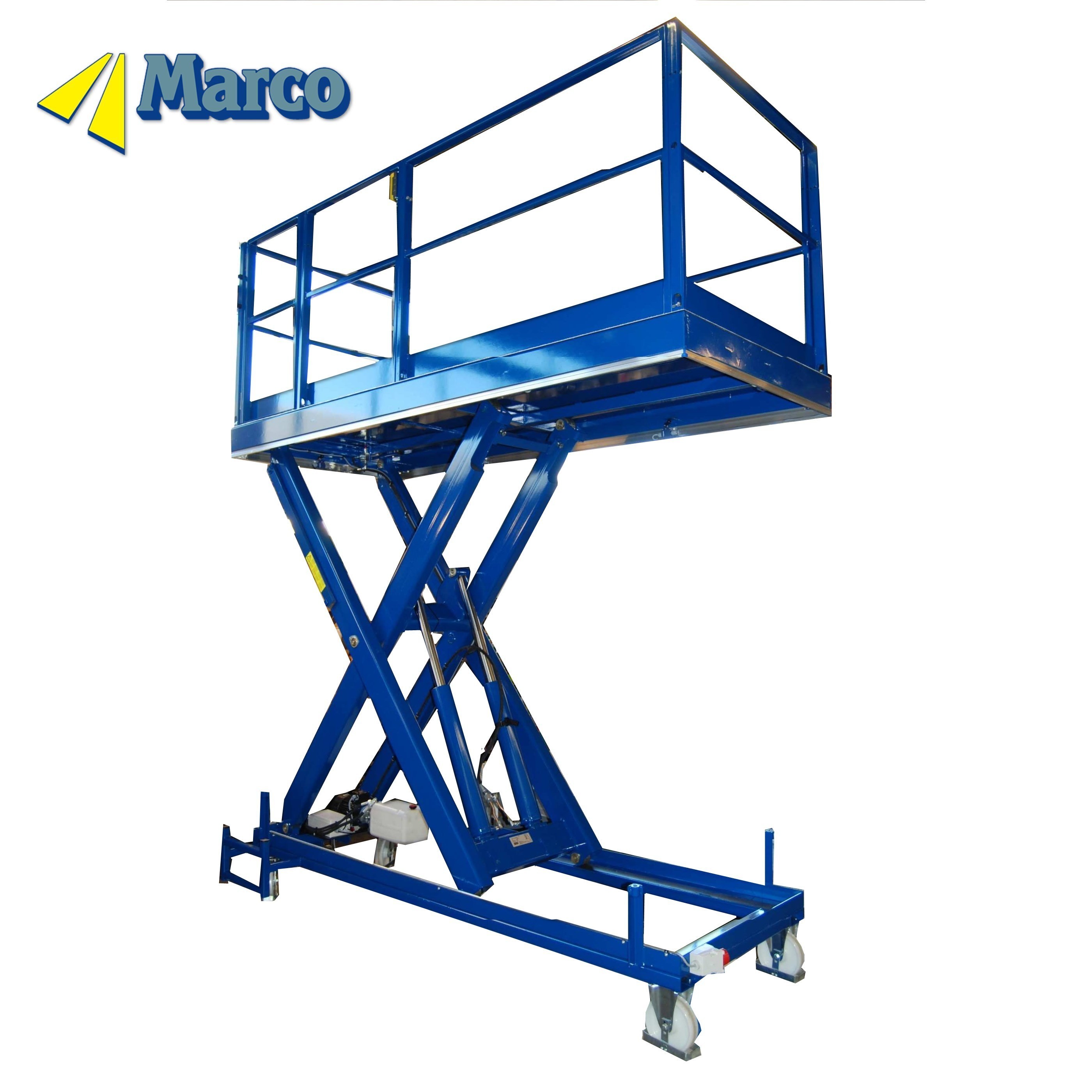

2600mm High Hydraulic Scissor Lift Working Platform with Wheel Chassis and Emergency Lowering
Product Description
2600mm High Hydraulic Scissor Lift Working Platform with Wheel Chassis and Emergency Lowering
| Mechanical data | |
| Capacity | 1000 Kg |
| Lift stroke | 2000 mm |
| Lifting time | 46 s |
| Closed height | 600 mm |
| Weight | 950 kg |
This working platform will be used for welding activities to pipes of big machineries.
In the petrochemical industry there is lot of hanging pipes and all the closures most be checked frequently for leaking or closing problems.
A worker must do some welding activities on the platform at 2600 mm hight.
Marco Standard Components
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
