Insulating Marco High Scissor Lift Table with CE Certification and Removable Segments
Detail Information
Certification:
CE
Model NO.:
M4-030230-D2/2H
Feature:
Insulating
Transport Package:
Wooden Package
Specification:
CE
Trademark:
Marco
Origin:
Ningb, China
HS Code:
8428909090
Application:
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism:
Scissor Lift
Carrying Capacity:
Weight Level
Moves:
Stationary
Driven Type:
Hydraulic
Running Mode:
Stationary
Customization:
Available | Customized Request
Product Description
Table type: M4-030230-D2/2H
Mechanical data:
Capacity 3000kg
Platform size Ø3100 or Ø3600mm
Frame size 2500x1640mm (LxW)
Lift stroke 2300mm
Lifting time 41s
Closed height 1150±50mm (910+290)
Weight 2663kg
Other

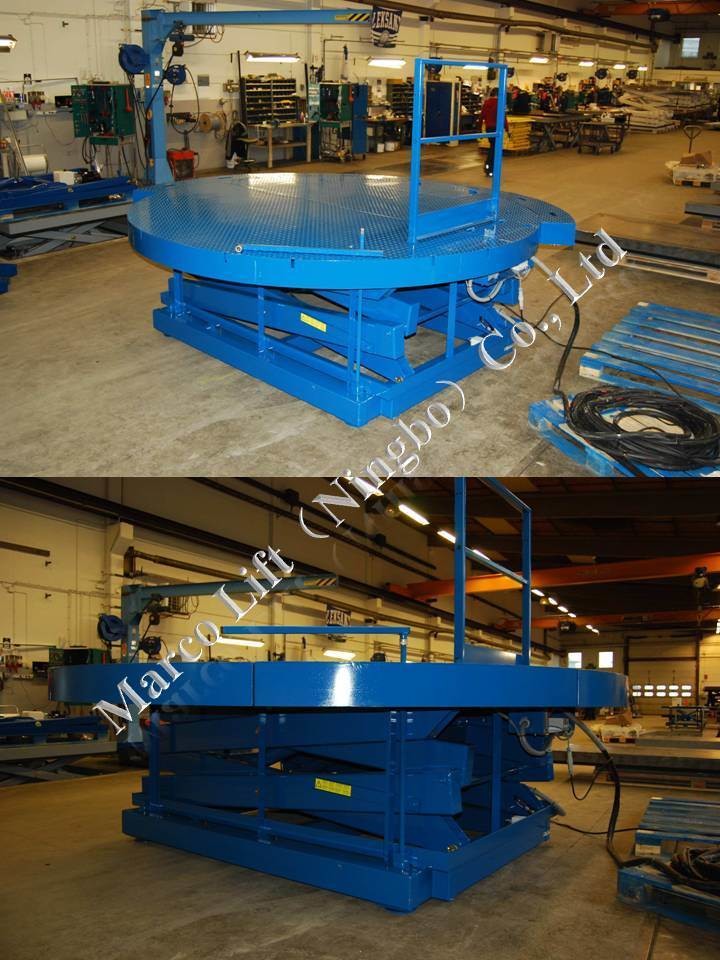

This table will be used to brick up a furnace. It's operated by a built-in foot control.The table can be levelled with an adjustable foot in each corner of the frame and by removing segments on the outside of table, the diameter can be changed.
Main Specification:
1.Standard Options
Pump: Europe brand
Control box- dead man control with up/down/E-stop
Cylinder: Marco designing, OEM made, including rupture valve, damping action and pilot valve
Sealing kit for cylinder: SKF brand
Motor: Hoyer motor, protection IP55
Scissor arm: Q345B
Hydraulic hose/fitting: Eaton
Paint: Finland brand - Tikkurila
2.Options extra:Depends on your require
Our Services:
1. For all your inquires about us , we will reply you in detail within 24 hours
2. We own well-tranied and passional sales and after- sale services who can speak fluent Engligh language
3. We can provide customise solutions to particular requirements
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
