products details
|
Hydraulic Scissor Lift Building Crane for Turbines Assemblying Working Platform
Detail Information
Certification:
CE, ISO 9001
Model NO.:
M4-020290-D4/2B
Product Name:
Hydraulic Scissor Lift Working Platform
Capacity:
2000kg
Lift Stroke:
2900mm
Close Height:
650mm
Transport Package:
Wooden Pallet
Trademark:
Marco
Origin:
Ningbo
HS Code:
8428909090
Supply Ability:
1200pieces/Year
Application:
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism:
Scissor Lift
Carrying Capacity:
Special Weight Level
Moves:
Stationary
Driven Type:
Hydraulic
Running Mode:
Stationary
Customization:
Available | Customized Request
Product Description

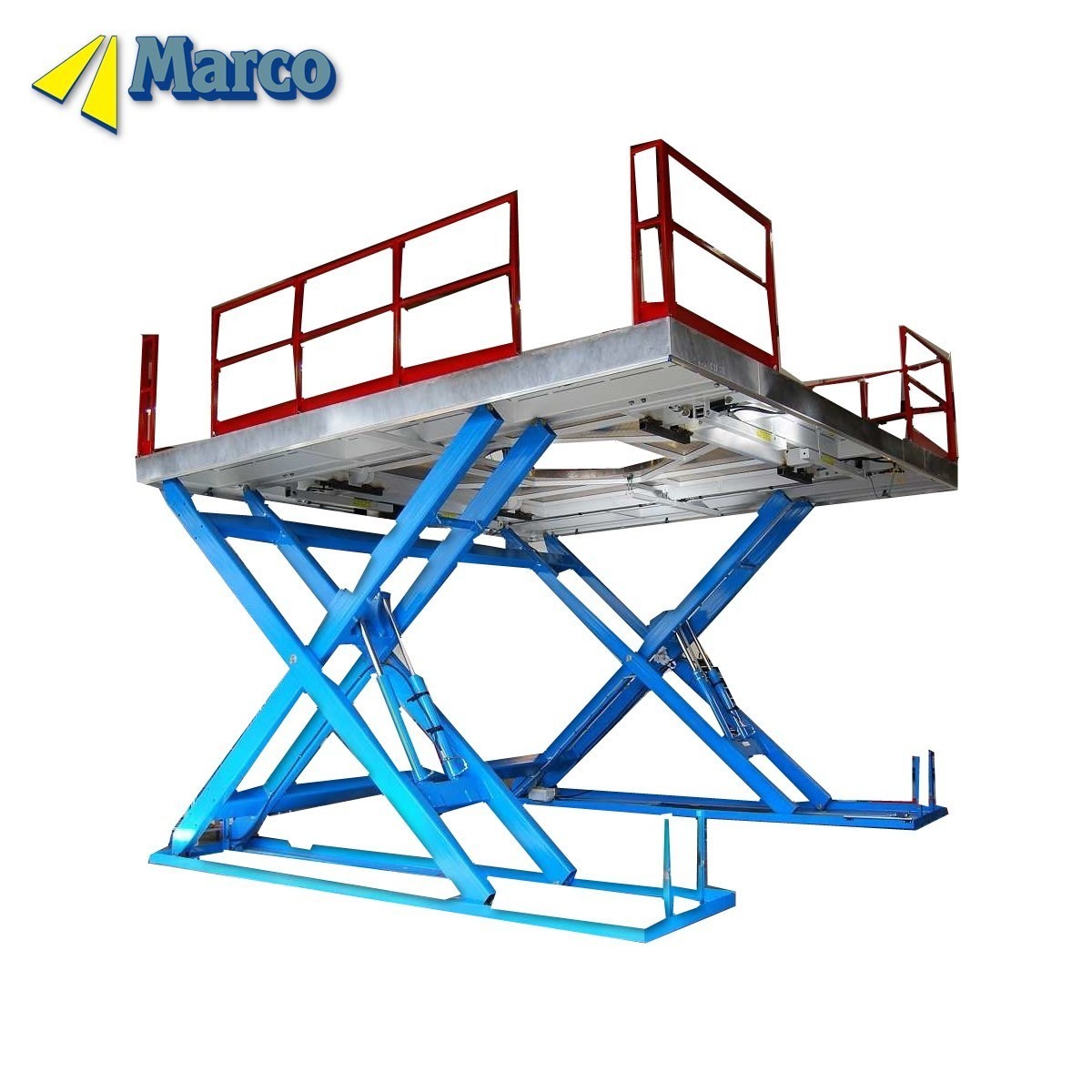

Hydraulic Scissor Lift Working Platform for Turbines Assemblying
Product Description
Hydraulic Scissor Lift Working Platform for Turbines Assemblying
| Mechanical data | |
| Capacity | 2000 Kg |
| Lift stroke | 2900 mm |
| Lifting time | 53 s |
| Closed height | 650 mm |
| Weight | 5125 Kg |
？ The table consist of 2 scissors and a working platform with 2 hydraulically driven flaps, making a hole in the middle.
？ The table simplifies the assembly of turbines.
Marco Standard Components
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
