CE Approved U-Shaped Scissor Lift Table with Hydraulic Drive and Competitive

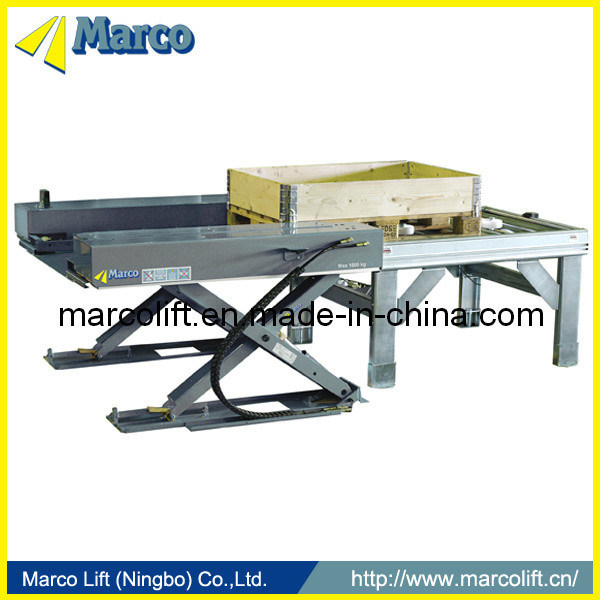

Marco U-shaped lift table is principally intended to be supplied for use in a working line coordinated production system.

In a production system, positioning and collection of pallets or other load carriers can be performed by the lift table. The goods are loaded/unloaded by a fork lift or pallet lifter on to the lift table, then after reaching the correct level, transfers the goods to the working line coordination production conveyor system via the use of a gravity or motor driven roller conveyor mounted on the lift table.

Due to the lift table low height no pit is required in the floor thus reducing installation costs.

The power pack is usually sited separately from the lift table so as not to limit the tilt table operation.

The Standard Marco U-shaped lift table has the following features:

lifting capacity 1000 kg

stroke 750 mm

platform 1500×1100 mm

Main Specification:
1.Standard Options

Pump: Europe brand
Control box- dead man control with up/down/E-stop

Cylinder: Marco designing, OEM made, including rupture valve, damping action and pilot valve

Sealing kit for cylinder: SKF brand

Motor: Hoyer motor, protection IP55

Scissor arm: Q345B

Hydraulic hose/fitting: Eaton

Paint: Finland brand - Tikkurila

2.Options extra:Depends on your require

Our Services:
1. For all your inquires about us , we will reply you in detail within 24 hours
2. We own well-tranied and passional sales  and after- sale services who can speak fluent Engligh language
3. We can provide customise solutions to particular requirements
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks  (public holiday excluded)
