products details
|

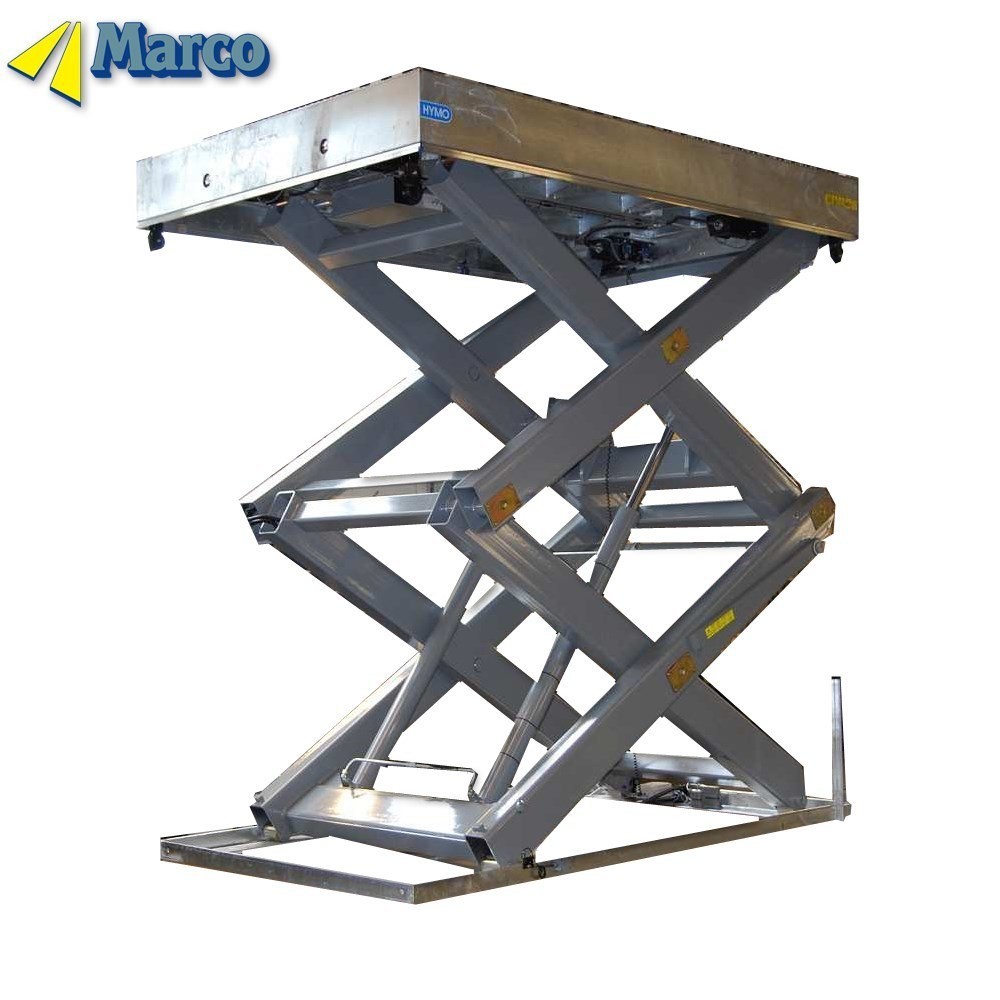

900mm Close Height Marco Vertical Hydraulic Scissor Lift Work Platform for Stationary
Detail Information
Certification:
CE, ISO 9001
Model NO.:
M5-030420-D2/2H
Product Name:
Marco Hydraulic Scissor Lift Work Platform
Capacity:
3000kg
Lift Stroke:
4200mm
Close Height:
900mm
Transport Package:
Wooden Pallet
Trademark:
Marco
Origin:
Ningbo
HS Code:
8428909090
Supply Ability:
1200pieces/Year
Application:
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism:
Scissor Lift
Carrying Capacity:
Special Weight Level
Moves:
Stationary
Driven Type:
Hydraulic
Running Mode:
Stationary
Customization:
Available | Customized Request
Product Description
Marco Vertical Hydraulic Scissor Lift Work Platform with Loading Flaps
Product Description
Marco Vertical Hydraulic Scissor Lift Work Platform with Loading Flaps
| Mechanical data | |
| Capacity | 3000 kg |
| Lift stroke | 4200 mm |
| Lifting time | 51 s |
| Closed height | 900 mm |
| Weight | 3810 kg |
Other
Middle level switches with inductive sensors results in a very accurate indication, which is needed in this case with hydraulic shot bolts in the platform.
Marco Standard Components
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
