products details
|

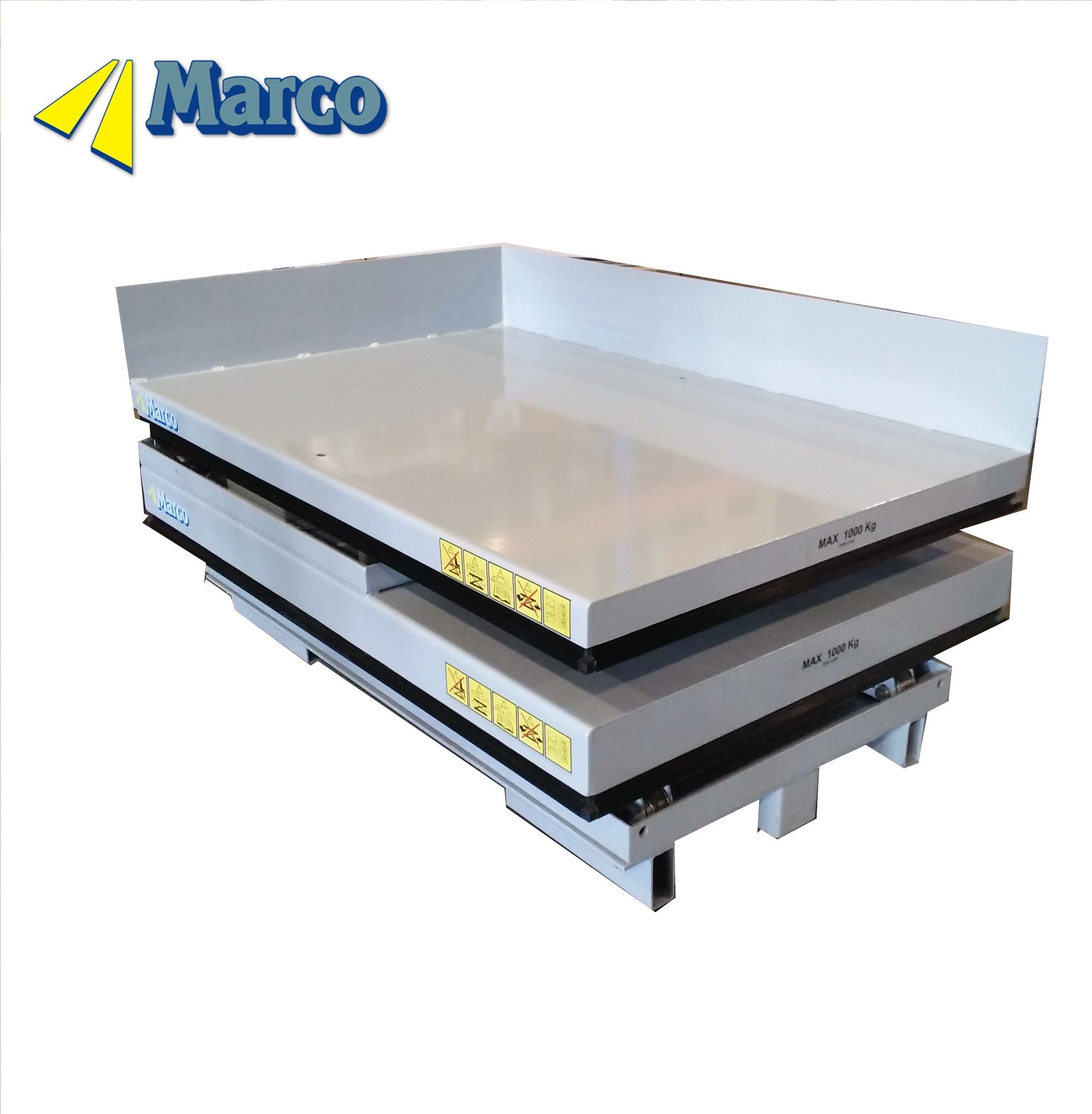

1000kg Hydraulic Tilt Scissor Lift Table Designed for Workshop Crane M2-010090-D2 MT
Detail Information
Certification:
CE, ISO 9001
Model NO.:
M2-010090-D2+MT
Product Name:
Marco Hydraulic Tilt Scissor Lift Table
Capacity:
1000kg
Lift Stroke:
900mm
Close Height:
410mm
Transport Package:
Wooden Pallet
Trademark:
Marco
Origin:
Ningbo
HS Code:
8428909090
Supply Ability:
1200pieces/Year
Application:
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism:
Scissor Lift
Carrying Capacity:
Special Weight Level
Moves:
Stationary
Driven Type:
Hydraulic
Running Mode:
Stationary
Customization:
Available | Customized Request
Product Description
Marco Material Handling Customsized 1000Kg Hydraulic Tilt Scissor Lift Table
Product Description
Marco Material Handling Customsized 1000Kg Hydraulic Tilt Scissor Lift Table
| SPECIFICATION | |||
| Capacity (Kg): | 1000 | Rated current (A): | 2,4 |
| Stroke (mm): | 900 | Control voltage (V): | 24 AC |
| Closed height (mm): | 410 | Power pack location: | INT |
| Platform length (mm): | 1500 | Protection class: | IP55 |
| Platform width (mm): | 1000 | Hydraulic oil: | K2 |
| Lifting time (s): | 20 | Surface treatment: | ISO 32 |
| Output (kW): | 0.75 | Colour: | RAL7040 |
| Power supply (V): | 3x400 AC | Lift category: | 3 |
| Frequency (Hz): | 50 | Declaration: | IIA |
Marco Standard Components
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
