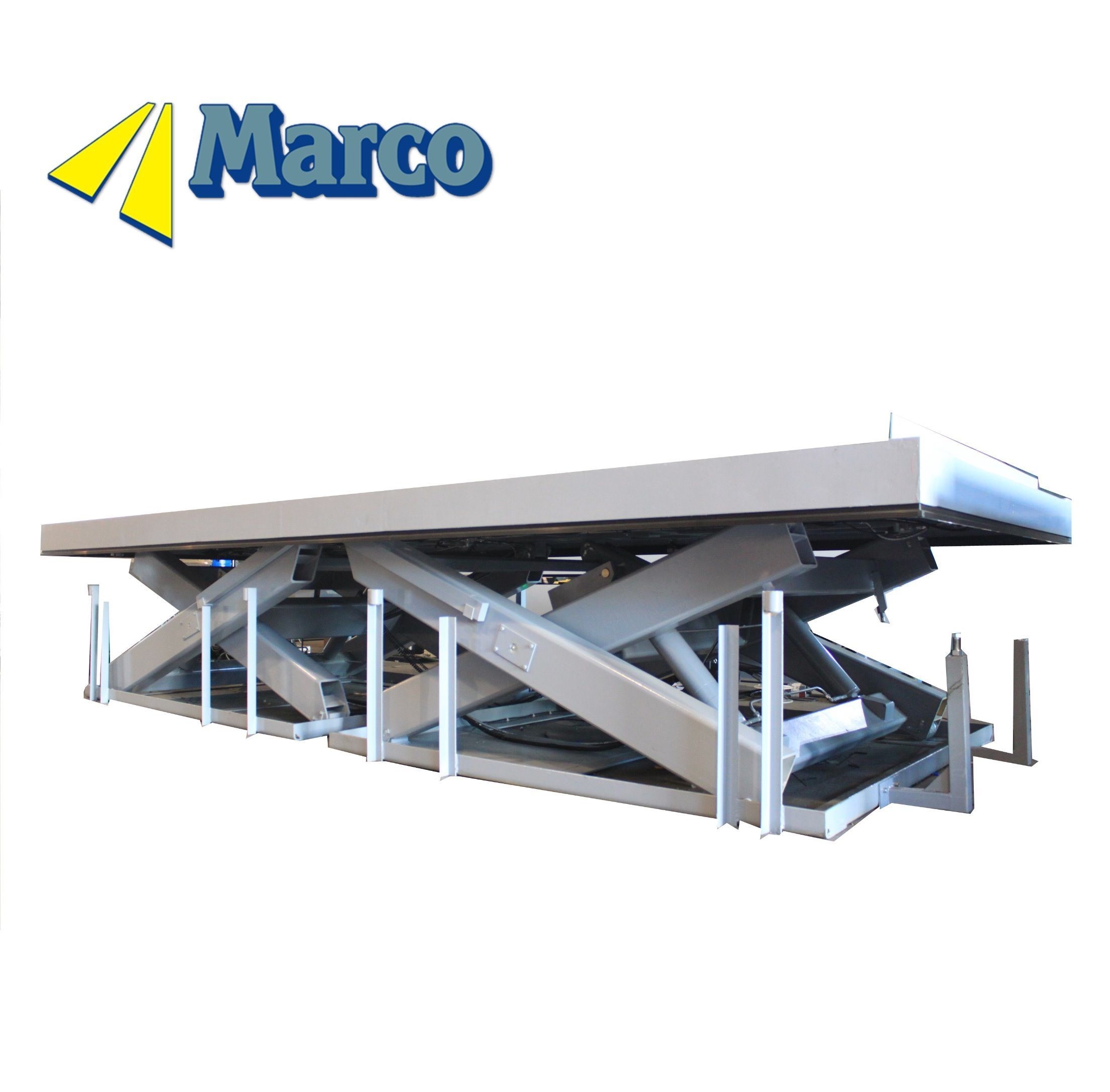

Hydraulic Scissors Lift Platform for Precise M5-050040-D4/2L Vehicle X-ray Inspection
Detail Information
Certification:
CE, ISO 9001
Model NO.:
M5-050040-D4/2L
Product Name:
Hydraulic Scissors Lift Platform For Vehicle
Capacity:
5000kg
Lift Stroke:
400mm
Transport Package:
Wooden Pallet
Trademark:
Marco
Origin:
Ningbo
HS Code:
8428909090
Supply Ability:
1200pieces/Year
Application:
Workshop Crane, Warehouse Crane, Building Crane
Lift Mechanism:
Scissor Lift
Carrying Capacity:
Special Weight Level
Moves:
Stationary
Driven Type:
Hydraulic
Running Mode:
Stationary
Customization:
Available | Customized Request
Product Description
Hydraulic Scissors Lift Platform for Lifting Vehicle X-ray Inspection on Frontier Inspection Station
Product Description
Hydraulic Scissors Lift Platform for Lifting Vehicle X-ray Inspection on Frontier Inspection Station
| Equipment | Electric Hydraulic Scissors Platform |
| Model | M5-050040-D4/2L |
| Use | Vehicle X-ray Inspection on Frontier Inspection Station |
| Platform Size (closed) | 6000x2500x800mm |
| Stroke (raise up) | 400mm |
| Lifting capacity (SWL) | 5000 Kg |
| Static load at low rest position | 7000 Kg |
| Total time for fully raised up | 20sec |
| Up and down position switch | Yes |
| Safety edge | Yes (Standard) |
| Wheel Lock (automatic roll off guard) on short sides | Yes (both end) |
| Installation location | Out door |
| Power Supply | 380V/3ph/50HZ |
| Remote Control box | Standard UP/DOWN/E-STOP |
| Control | PLC control system for scissors lift including electric overloading ad lower hydraulic pressure, automatic roll off protection, warning alarm |
| Protection of Hydraulic power unit | IP65 |
| Hydraulic Fluid | BIO FD (Standard) |
| Location for use | Inbound and Outbound Private Car Mobile X-Ray Operation Area |
Marco Standard Components
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
