Marco Ergonomic Hydraulic Tilt Scissor Goods Lift Table for Smooth Stationary Lifting
Detail Information
Certification:
CE, ISO 9001
Model NO.:
M0-002050-D1+ MT 002045-D1
Product Name:
Marco Ergonomic Hydraulic Tilt Scissor Goods Lift
Capacity:
200kg
Lift Stroke:
500mm
Close Height:
360mm
Transport Package:
Wooden Pallet
Trademark:
Marco
Origin:
Ningbo
HS Code:
8428909090
Supply Ability:
1200pieces/Year
Application:
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism:
Scissor Lift
Carrying Capacity:
Special Weight Level
Moves:
Stationary
Driven Type:
Hydraulic
Running Mode:
Stationary
Customization:
Available | Customized Request
Product Description

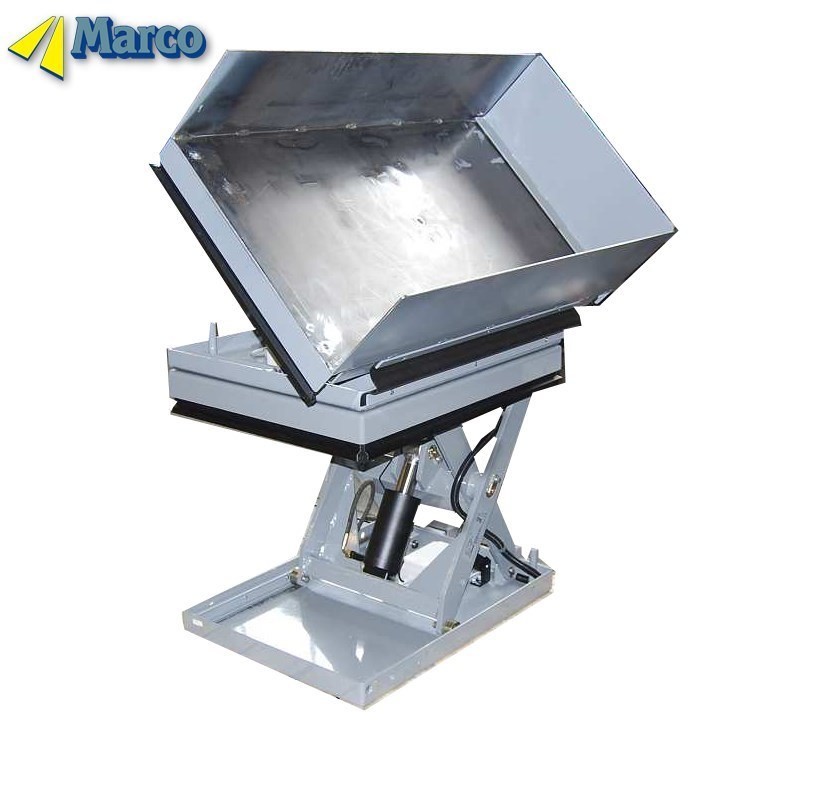

Marco Ergonomic Hydraulic Tilt Scissor Goods Lift Table
Product Description
Marco Ergonomic Hydraulic Tilt Scissor Goods Lift Table
| Mechanical data | |
| Capacity | 200 Kg |
| Lift stroke | 500 mm |
| Lifting time | 8 s |
| Closed height | 360 mm |
| Weight | 310 Kg |
？Ergonomic compact lift table fitted with a tilt unit (45°) for optimal operator working height and is used in an assembly line.
？Roll off protection around the table is fixed at both long sides and removable at the short sides.
？The table and the tilt runs with a double hand control panel for high security.
Marco Standard Components
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
